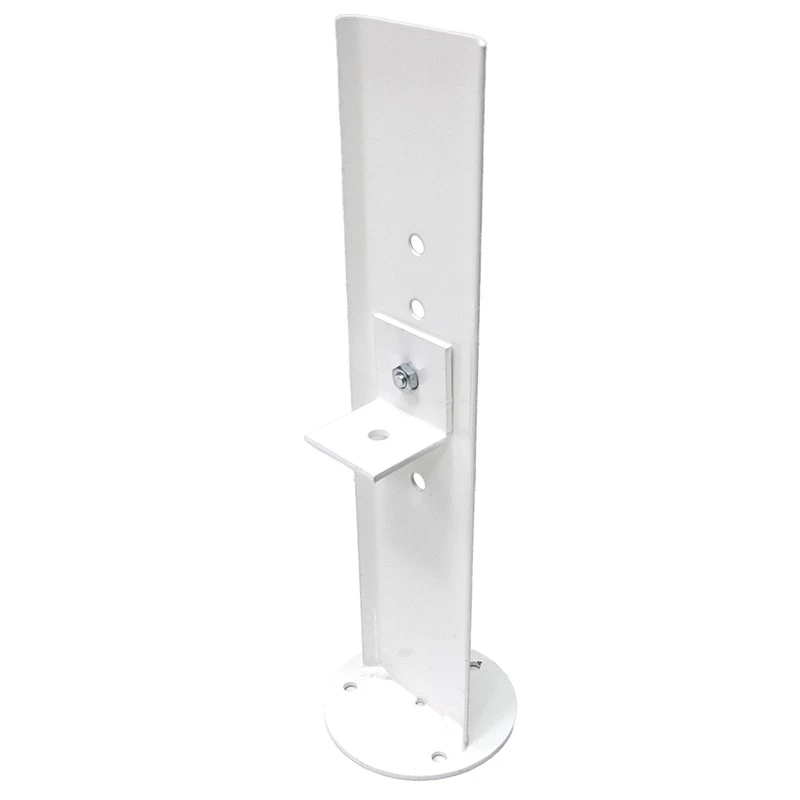

Floor Stand for 30 cm Steel Radiators

This product is a practical, aesthetically pleasing solution for mounting radiators when wall installation is not possible or desired. The stand fits between the radiator’s convector fins, providing firm, stable floor support.

Main features:

1. Height-adjustable: Five height settings allow you to adjust the stand to the desired radiator height and position. This flexibility ensures correct, precise installation across different spaces and scenarios.

2. High‑quality material: Made from S235 structural steel in 2.0 mm and 2.5 mm thicknesses for durability and high load resistance. Components include a clamp/strap 2 x 73 x 298 mm (t x w x l), a round base plate (washer) Ø 90 mm x 2.5 mm, and a fixing angle 40 x 40 x 38 mm—all precision‑made for a secure fit.

3. Anti‑corrosion protection: All metal parts are electrostatically powder‑coated in RAL 9016 (exterior‑grade), providing excellent resistance to corrosion and wear. Suitable for indoor and outdoor use.

4. Fasteners included: Supplied with a screw and nut for quick, easy installation. These are included in the product price.

5. Versatility: Recommended for steel panel radiators, but may be used with other models depending on the radiator’s dimensions and design. Note: the mounting height varies based on the convector fin design and the orientation of the fixing angle (with the horizontal leg up or down).

Technical data:

• Stand height: 300 mm
• Base plate diameter: Ø 90 mm
• Material: S235 steel, 2.0 mm and 2.5 mm thickness
• Coating: RAL 9016 powder coat, exterior‑resistant
• Fixing: Angle 40 x 40 x 38 mm; M6 x 12 screw and M6 nut
• For more details download the technical datasheet

Installation examples

Fixing angle orientation: can be installed with the horizontal leg facing up.

Fixing angle orientation: can be installed with the horizontal leg facing down.

Classic installation example. Between the radiator’s convector fins

Side installation example.
