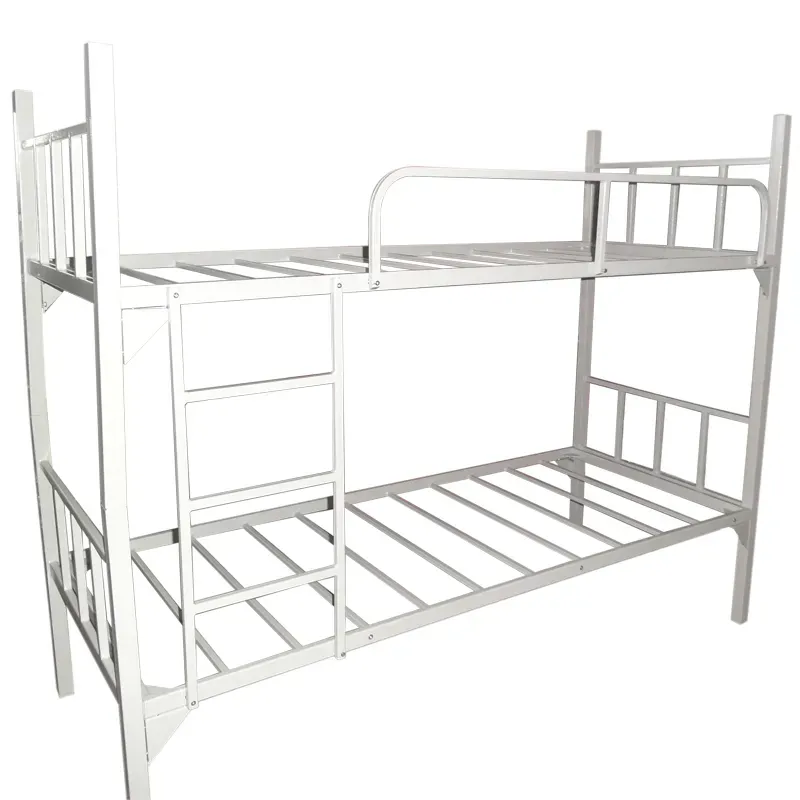

Metal Bunk Bed

Discover a sturdy and practical bunk bed, built from high-quality metal pipes. With side panels made of square tubes and steel slats for the mattress, this bed offers strength and durability. Easy assembly and electrostatic painting in accordance with RAL 7035 Palette complete its practical and aesthetic appearance.

Technical Specifications:

• Dimensions:
  • Length: 2120 mm
  • Width: 940 mm
  • Height: 1680 mm

Metal Construction:

• The side panels are made of square tubes 40 x 40 x 1.5 mm on edges and tubes with dimensions of 20 x 20 x 1.5 mm, assembled by welding with 40x40x1.5 mm tubes.
• The ceiling beams for the bed are made of rectangular tubes 40 x 20 x 1.5 mm.
• The mattress slats are made of flat steel, with a distance of 150 mm between them, eliminating the need for OSB boards.
• The connection between the upper and lower bed is made using plugs from 35 x 35 x 1.5 mm tubes welded inside the 40 x 40 x 1.5 mm tubes of the lower bed.
• The ladder and railing are detachable and assembled to the upper bed with screws and threaded nuts.
• Weight supported up to 200 kg.
• The ladder and intermediates are made of square tubes 20 x 20 x 1.5 mm.
• Painted in electrostatic field according to RAL 7035 Palette, for protection and aesthetics.
