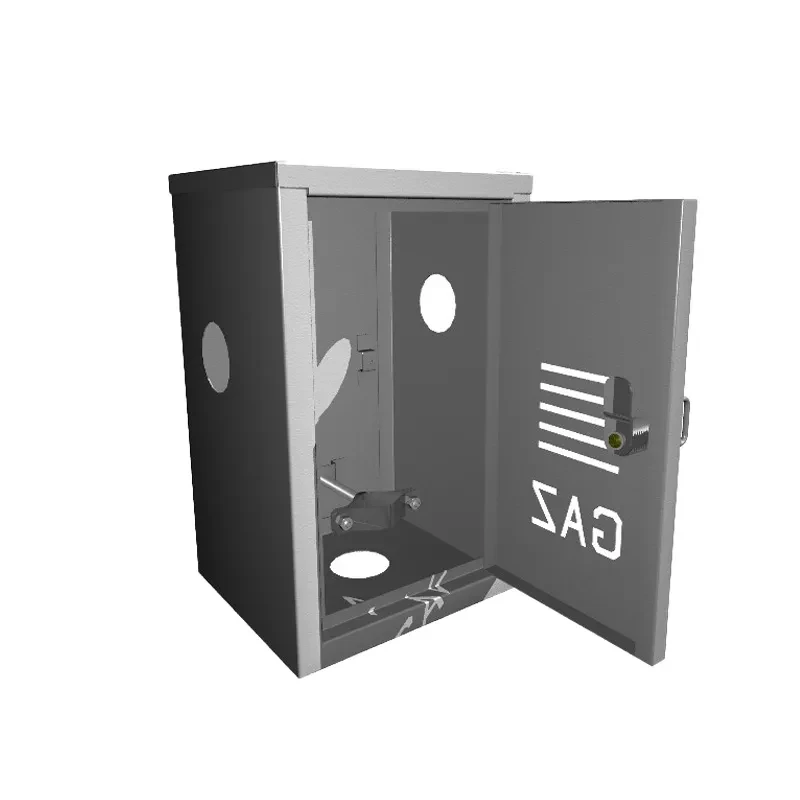

Gas Pressure Regulator Protection Grille

The protective enclosure for the gas pressure regulator provides the required protection in low-pressure gas distribution networks. Manufactured from 0.7 mm LBR galvanised steel sheet and measuring a compact 340 x 210 x 190 mm, it is solid and durable. Equipped with a door and secure locking, it offers optimal ventilation and is easy to install. Finished in RAL 7032 grey for a modern appearance.

We manufacture customised products tailored to your needs—whether you already have a project ready or prefer to collaborate with us to develop the optimal design. Benefit from competitive pricing, adjusted according to project complexity and order volume. For additional information and orders, please contact us via the contact form, by phone: 0236-319417 or email: office@mar-ina.ro

Manufacture:

• Material: 0.7 mm LBR galvanised steel sheet, DC01A grade
• Dimensions: 340 x 210 x 190 mm

Description:

• Welded steel construction, solid and durable, with a single door
• Locking via a metal lock with a triangular utility key for added security
• Ventilation slots in the door for airflow
• Holes for mounting valve couplings and fixing clamps for valves and the regulator on the side walls and the base of the box
• Electrostatic powder-coated in exterior-grade RAL 7032 grey

The product is certified under the performance requirements of Regulation (EU) No 305/2011 of the European Parliament and of the Council (Construction Products Regulation, CPR), certificate number 016-05/3899-2023 valid until 25.05.2026.

This certificate confirms that this gas enclosure may be used in gas installations associated with buildings, as it meets the seven fundamental requirements of Law No. 10/1995 on construction quality, republished, as amended.

• Mechanical resistance and stability: The design solutions, use of cold‑formed galvanised steel sheet, and assembly methods ensure strength and stability in service.
• Fire safety: The products meet this requirement.
• Hygiene, health, and the environment: By design and material selection, the enclosure presents no hazards in use. It is non‑toxic, does not affect human health, and contains no substances posing risks to people or the environment. Applicable hygiene and occupational safety regulations must be observed during use.
• Safety and accessibility in use: Galvanised steel enclosures of this type do not create risks of snagging, injury, or impact when the manufacturer’s installation and use instructions are followed.
• Noise protection: The products meet this requirement.
• Energy economy and thermal insulation: The products meet this requirement.
• Sustainable use of natural resources: Applied in accordance with Law No. 10/1995 (as amended) and Regulation (EU) 305/2011.

Certification according to Regulation (EU) 305/2011
