METAL and FIRE under CONTROL

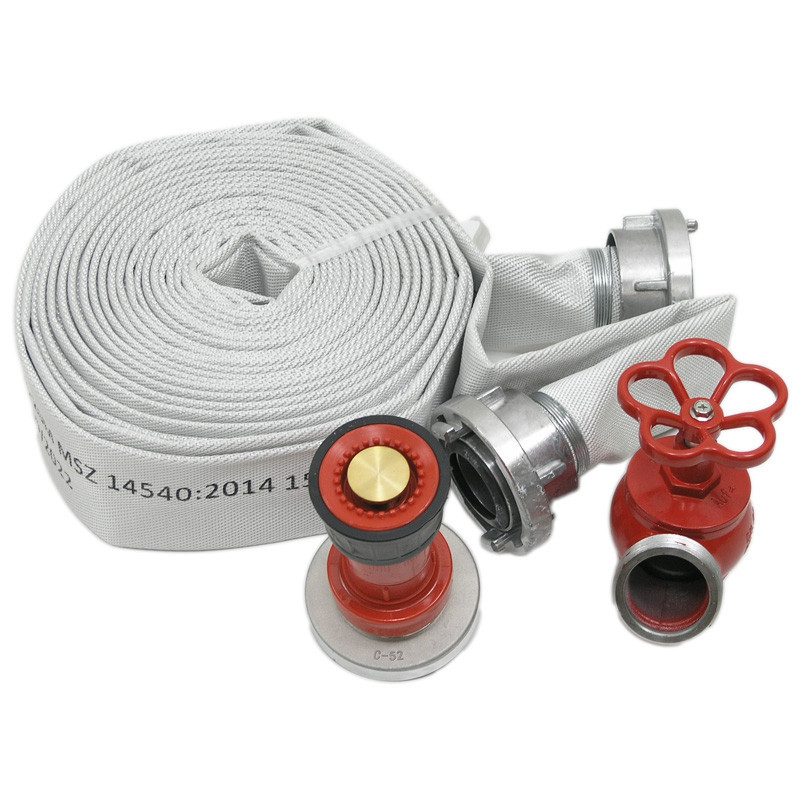

Type C hose, 12 mm discharge pipe and ALUMINUM valve with fixed type C coupling
lei260.00
Tax included
Return policy: 14
The type C hose, together with the 12 mm discharge pipe and the aluminum valve with fixed type C coupling, represents a complete set that is part of hydrant cabinets, being essential for fire-fighting equipment.
Limitation of Liability: The product information corresponds to the time of writing and is provided for informational purpos
Delivery policy: Important no. phone! We will contact you for confirmation. Fast courier at 17 RON under 15 kg.
Returns policy: Customers have the right to return products within 14 days of receiving them.
Contents:
- Reel for type C hose, rotating drum made of pickled DC01 sheet steel, 0.7 mm thick, cold rolled, on which the hose is wound.
- Type C hose, DN 52, Length 20 meters, white color, with type C couplings, manufactured in accordance with EN 14540:2007
- Hydrant valve made of aluminum DN52, PN 16 with fixed coupling, according to ISO 5208;
- Fixed coupling type C52
- Delivery pipe of 12 mm
The DN52 delivery hose is a flattenable rubberized textile hose whose cross-section becomes circular only under internal pressure, and when empty it can be folded and laid flat. It is intended for transporting water for fire extinguishing.
Technical characteristics:
- The internal diameter, length and linear mass of the hose must comply with SR EN 671-2.
- Internal diameter for type C hose: 52 mm (tolerances + 1.0 mm / - 0.5 mm)
- Length: 20 m (tolerances + 1.0 mm / - 0.5 mm)
The type C fixed coupling is part of the category of water passage accessories and is installed inside buildings on the water distribution network used for fire extinguishing. Manufactured according to STAS 701-74
From a construction point of view, it consists of the body, seal carrier and sealing gasket, from which the water discharge hose can be connected in case of fire. The seal carrier is fixed to the coupling body by swaging, so that the parts form a single unit. The passage diameter for the type C fixed coupling is 2 inch.
The pressure it must withstand is at least 12 bar.
The hydrant valve for indoor hydrant is part of the category of water passage accessories and is installed inside buildings on the water distribution network used for fire extinguishing. Manufactured according to STAS 2501-83.
From a construction point of view, it consists of a valve spindle and the fixed type C coupling (threaded), from which the water discharge hose can be connected in case of fire.
The pressure it must withstand is at least 12 bar.
The internal diameter of the pipe on which the hydrant valve is mounted is 2 inch. Hydrant valves are delivered fully equipped, with the fixed coupling mounted.
DN 52 delivery pipe, 12 mm diameter, for compact and spray jet Q=2.5 l/s with valve.
The products comply with:
- Law 319/2006 - Occupational Health and Safety Law
- Law 265/2006 - Environmental Protection Law
Specific References
No customer reviews for the moment.
The type C hose, together with the 12 mm discharge pipe and the aluminum valve with fixed type C coupling, represents a complete set that is part of hydrant cabinets, being essential for fire-fighting equipment.
