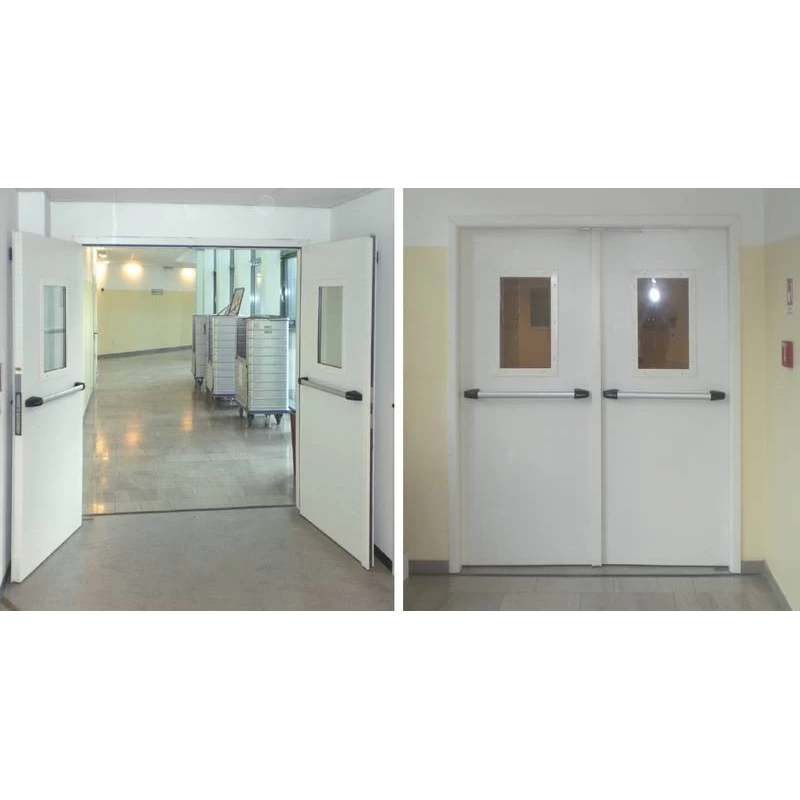

Fire door - Endoor - Two-leaf - 60-minute certification

The Endoor door construction features a double galvanised steel structure, with 0.7 mm sheet thickness per leaf and a thermally insulating core made of alternating layers of rigid mineral wool and special fire‑resistant materials. This provides a total leaf thickness of 60 mm, optimised for thermal and mechanical protection.

Endoor double-leaf profile

The door is supplied fully equipped, with leaves removed, a 3‑piece frame, left‑hand (SX) or right‑hand (DX) opening, and reversible in the standard non‑glazed version, consisting of

• Door leaves made from double galvanised steel sheet, 0.7 mm each side, with a high‑density core of mineral wool alternated with a special fire‑resistant compound. Total leaf thickness: 60 mm. Designed with overlapping rebates on 3 sides for left/right opening versions, and on 4 sides for the reversible version. An insulated central meeting profile (astragal) is incorporated in the inactive leaf, housing the top and bottom bolts. The bolt locking device is adjustable and interchangeable with the floor strike plate to allow reversibility. A guide box in the frame, fitted with a roller, reduces friction, wear, and damage.
• The door is wrapped in 2 mm protective film and includes overlap protection for the frame on the two vertical sides and the head, to prevent damage during transport.
• Three‑sided angle frame in galvanised steel profile, 1.3 mm thick, with bendable fixing tabs for installation in masonry with mortar. The head section is fastened to two profiles with 4 self‑tapping screws and a temporary lower spacer, removed after installation.
• Reversible locks: cylinder preparation in the active leaf and a lever in the inactive leaf to retract the bolts. Cylinder not included; it can be selected separately to meet specific security requirements.
• Security pins (dog bolts) in steel on the leaf edges and polyamide strike boxes mounted in the frame on the hinge side.
• Lever handle in black with a steel core (a steel insert is mandatory for handles on fire‑resistant doors), supplied with backplates in ebonite and a construction key (a temporary key used during installation and subsequent works until the final cylinder is fitted; it includes a plastic insert that protects the cylinder hole and allows provisional access without compromising the final mechanism) and a plastic plug for the cylinder aperture. The kit includes a 9×9 mm metal spindle, through‑bolts, spacers, pin, and Allen key for adjustment. Handle mounting height: 1075 mm from finished floor for standard 2150 mm doors and the same position for custom heights (taller or shorter).
• 4 hinges, including one spring hinge for self‑closing and one load‑bearing, height‑adjustable hinge.
• Door coordinator to ensure the correct closing sequence of the leaves.
• Internal reinforcement plates in the leaves for subsequent installation of panic hardware and door closers.
• Black intumescent seals: one 28 mm seal inserted in the frame groove and one 44 mm seal in the central meeting profile.
• Metal conformity label applied to the edge of the active leaf.
• Finish: semi‑gloss, water‑based textured (embossed) paint in standard RAL 7035 (Light Grey).
• Manufactured in standard and custom sizes, within the limits specified in the price list.
• Standard finishes: semi‑gloss paint, RAL 7035 Light Grey (        ), RAL 9010 Pure White, RAL 7016 Anthracite Grey (        ).
• Approximate door weight: 120 kg/m² wall opening (EI2 120).
• Delivered on wooden pallets with an identification label on the outside of the frame and on the leaf edges. Installation, use, and maintenance manual included under the plastic shrink‑wrap, together with the certificate and declaration of conformity.
• Optional accessories: additional rubber seal, cylinder, panic bars, door closer, etc.

Standard equipment includes:

• 28 mm intumescent seal for fire‑time sealing;



  Intumescent seal for optimal sealing
• Product serial label;



  Metal plate stamped with product serial

Optional equipment

To meet specific project requirements, the Endoor door can be complemented with additional accessories.

Electronic smart lock with card, available in black, grey, and white

Smart locks in white, grey and black

Painting in colours other than RAL 7035 Light Grey (        ), RAL 9010 Pure White, and RAL 7016 Anthracite Grey (        )

Fire‑resistant glazing, including glazing beads/profiles. Screws visible on one side.

Note: If glazing is fitted to timber‑effect doors, a surcharge of €48.00 each applies.

Fire‑resistant glass EI2 60 (25 mm thickness)

Other optional products

HANDLES

* Includes emergency handle (without cylinder)

Surcharge: handles other than MS (or MS2A for double‑leaf doors)

“TWIST” CROSSBARS (panic hardware)

Surcharge: Twist bar instead of MS/MS2A; includes preparation for BM, BSP and BS; replaces panic hardware and half cylinder.

Additional sale: Kit including base, aluminium bar, threaded spindle and opposite‑side handle; half cylinder for BM - BSP - BS types without latch case

The Endoor door construction features a double galvanised steel structure, with 0.7 mm sheet thickness per leaf and a thermally insulating core made of alternating layers of rigid mineral wool and special fire‑resistant materials. This provides a total leaf thickness of 60 mm, optimised for thermal and mechanical protection.

Endoor double-leaf profile

The door is supplied fully equipped, with leaves removed, a 3‑piece frame, left‑hand (SX) or right‑hand (DX) opening, and reversible in the standard non‑glazed version, consisting of

• Door leaves made from double galvanised steel sheet, 0.7 mm each side, with a high‑density core of mineral wool alternated with a special fire‑resistant compound. Total leaf thickness: 60 mm. Designed with overlapping rebates on 3 sides for left/right opening versions and on 4 sides for the reversible version. An insulated central meeting profile (astragal) is incorporated in the inactive leaf and houses the top and bottom bolts. The bolt locking device is adjustable and interchangeable with the floor strike plate for reversibility. A guide box in the frame, fitted with a roller, reduces friction, wear, and damage.
• The door is wrapped in 2 mm protective film and includes overlap protection for the frame on the two vertical sides and the head, to prevent damage during transport.
• Three‑sided angle frame made from galvanised steel profile, 1.3 mm thick, with bendable mounting tabs for installation in masonry using mortar. The frame head fixes to two profiles with 4 self‑tapping screws and a temporary lower spacer, removed after installation.
• Reversible locks: cylinder preparation in the active leaf and a lever in the inactive leaf to retract the bolts. Cylinder not included; it can be selected separately to meet specific security requirements.
• Security pins (dog bolts) in steel on the leaf edges and polyamide strike boxes mounted in the frame on the hinge side.
• Lever handle in black with steel core (a steel insert is mandatory for handles on fire‑resistant doors), supplied with backplates in ebonite and a construction key (a temporary key used during installation and subsequent works until the final cylinder is fitted; it includes a plastic insert that protects the cylinder hole and allows provisional access without compromising the final mechanism) and a plastic plug for the cylinder aperture. The kit includes a 9×9 mm metal spindle, through‑bolts, spacers, pin and Allen key for adjustment. Handle mounting height: 1075 mm from finished floor for 2150 mm standard doors, same position for custom sizes (taller or shorter).
• 4 hinges, including one spring hinge for self‑closing and one load‑bearing height‑adjustable hinge.
• Door coordinator to ensure the correct closing sequence of the leaves.
• Internal reinforcement plates in the leaves for subsequent installation of panic hardware and door closers.
• Black intumescent seals: one 28 mm seal inserted in the frame groove and another 44 mm seal in the central meeting profile.
• Metal conformity tag applied to the edge of the active leaf.
• Finish: semi‑gloss, water‑based textured (embossed) paint in standard RAL 7035 (Light Grey).
• Manufactured in standard and custom sizes, within the limits specified in the price list.
• Standard finishes: semi‑gloss paint, RAL 7035 Light Grey (        ), RAL 9010 Pure White, RAL 7016 Anthracite Grey (        ).
• Approximate door weight: 120 kg/m² wall opening (EI2 120).
• Delivered on wooden pallets with identification labels on the outside of the frame and on the leaf edges. Installation, use and maintenance manual included under the plastic shrink‑wrap, together with the approval and declaration of conformity.
• Optional accessories: additional rubber seal, cylinder, panic bars, door closer, etc.

Standard equipment includes:

• 28 mm intumescent seal for fire‑time sealing;



  Intumescent seal for optimal sealing
• Product serial label;



  Metal plate stamped with product serial

Optional equipment

To meet specific project requirements, the Endoor door can be complemented with additional accessories.

Electronic smart lock with card, available in black, grey and white

Smart locks in white, grey and black

Painting in colours other than RAL 7035 Light Grey (        ), RAL 9010 Pure White and RAL 7016 Anthracite Grey (        )

Fire‑resistant glazing, including glazing beads/profiles. Screws visible on one side.

Note: If glazing is fitted to timber‑effect doors, a surcharge of €48.00 each applies.

Fire‑resistant glass EI2 60 (25 mm thickness)

Other optional products

HANDLES

* Includes emergency handle (without cylinder)

Surcharge: handles other than MS (or MS2A for double‑leaf doors)

“TWIST” CROSSBARS (panic hardware)

Description	Surcharge	Additional sale
TW BM = Twist bar + handle and plate with half cylinder
BLACK or ALUX	78,47	75,66
TW BSP = Twist bar + fixed knob and plate with half cylinder
BLACK or ALUX	81,06	78,47
TW BS = Twist bar + plate with half cylinder
BLACK or ALUX	75,66	73,07
TW BMC = Twist bar + handle with blank plate
BLACK or ALUX	65,19	71,88
