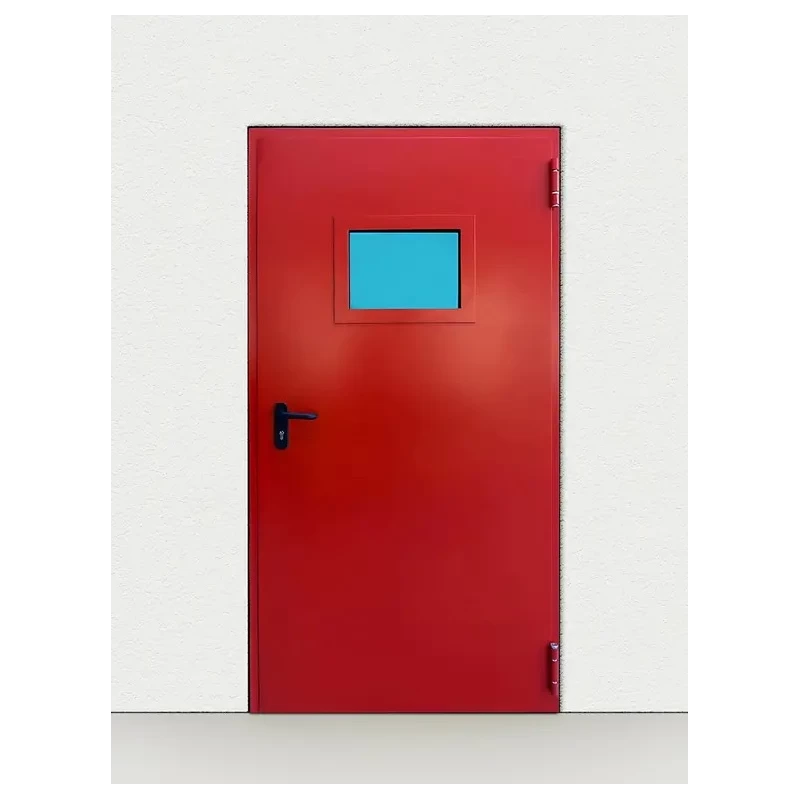

Fire door - Endoor - One-leaf - 120-minute certification

The Endoor door construction features a double galvanised steel structure, with 0.7 mm sheet thickness per leaf and a thermally insulating core of alternating layers of rigid mineral wool and special fire‑resistant materials. This provides a total leaf thickness of 60 mm, optimised for thermal and mechanical protection.

Endoor single-leaf profile

The door is supplied fully assembled and ready for installation, with certified fire resistance of 120 minutes (EI2 120). By default it is available left‑hand opening (SX); right‑hand opening (DX) is available on request.

Main features:

• The leaf consists of two galvanised steel sheets (0.7 mm each), with an inner core of high‑density mineral wool alternated with layers of a special fire‑resistant compound. Total leaf thickness: 60 mm.
• The door is wrapped in 2 mm protective film and includes overlap protection for the frame on the two vertical sides and the head, to prevent damage during transport.
• Frame made of 1.4 mm galvanised steel on 3 sides (no threshold), equipped with flexible fixing tabs for wall installation using mortar. The head of the frame includes spacers that are removable after installation.
• The locking system will be supplied left or right (SX or DX) according to your order. It is designed to accept a standard Euro profile cylinder (not included). The cylinder can be selected separately to suit specific security requirements, in two variants:
1. standard cylinder with construction key;
2. master‑key cylinder (one master key can open multiple doors within a building).
• Fire‑resistant doors are fitted with steel safety rivets along the leaf edge and polyamide reinforcement boxes integrated into the frame on the hinge side, to strengthen the hinges during a fire.
• Lever handle in black with steel core (a steel insert is mandatory for handles on fire‑resistant doors), supplied with backplates in ebonite and a construction key (a temporary key used during installation and subsequent works until the final cylinder is fitted; it includes a plastic insert that protects the cylinder hole and allows provisional access without compromising the final mechanism) and a plastic plug for the cylinder aperture. The kit includes a 9×9 mm metal spindle, through‑bolts, spacers, pin and Allen key for adjustment.
• Handle centre height is 1075 mm from finished floor for standard models; customised on made‑to‑order models.
• Two height‑adjustable hinges: one spring hinge for self‑closing and one ball‑bearing hinge.
• Reinforcement plates embedded inside the leaf for later installation of panic hardware or a door closer.
• 28 mm intumescent seal mounted on the frame (expands above 170 °C to seal against fire, smoke and oxygen ingress).
• Metal identification plate on the leaf edge with product data. Each product is serialised with a unique code.
• Standard finish: semi‑gloss paint, RAL 7035 Light Grey (        ), RAL 9010 Pure White, RAL 7016 Anthracite Grey (        ).
• Approximate weight: 45 kg/m² (EI2 120).
• Delivered on a wooden pallet with installation and maintenance manual and conformity documents, all shrink‑wrapped.

Standard equipment includes:

• 28 mm intumescent seal for fire‑time sealing;



  Intumescent seal for optimal sealing
• Product serial label;



  Metal plate stamped with product serial

Optional equipment

To meet specific project requirements, the Endoor door can be complemented with additional accessories.

Electronic smart lock with card, available in black, grey and white

Smart locks in white, grey and black

Painting in colours other than RAL 7035 Light Grey (        ), RAL 9010 Pure White, and RAL 7016 Anthracite Grey (        )

Fire‑resistant glazing, including glazing beads/profiles. Screws visible on one side.

Note: If glazing is fitted to timber‑effect doors, a surcharge of €48.00 each applies.

Fire‑resistant glass EI2 120 (51 mm thickness)

Other optional products

HANDLES

* Includes emergency handle (without cylinder)

Surcharge: handles other than MS (or MS2A for double‑leaf doors)

“TWIST” CROSSBARS (panic hardware)

Surcharge: Twist bar instead of MS/MS2A; includes preparation for BM, BSP and BS; replaces panic hardware and half cylinder.

Additional sale: Kit including base, aluminium bar, threaded spindle and opposite‑side handle; half cylinder for BM - BSP - BS types without latch case

SLASH CROSSBAR (panic hardware)

Surcharge for Slash bars instead of standard MS (or MS2A for double‑leaf doors), with preparation included. For BM, BSP, BS models, conversion to emergency handle and half cylinder is included. Doors ordered with a Slash bar are supplied with a fixing plate; no cover caps for standard cut‑outs.

Additional sale: Kit including base, aluminium bar, threaded spindle and opposite‑side handle; half cylinder for BM, BSP, BS without latch case and without fixing plate and cover cap.

LOCKS

ACCESS CONTROL SYSTEM (SCA)

CONTROL UNITS, DETECTORS, ELECTROMAGNETS

SMOKE AND ACOUSTIC SEALING

(attenuation 37 dB for single‑leaf door, 36 dB for double‑leaf door)
