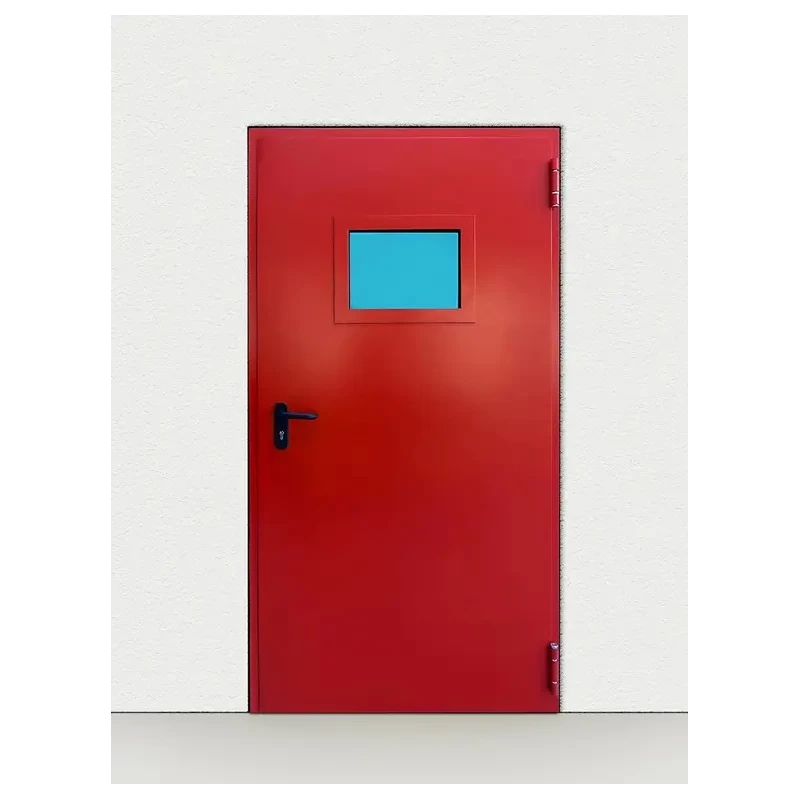

Fire door - Endoor - One-leaf - 60-minute certification

The Endoor door construction features a double galvanised steel structure, with 0.7 mm sheet thickness per leaf and a thermally insulating core made of alternating layers of rigid mineral wool and special fire‑resistant materials. This yields a total leaf thickness of 60 mm, optimised for thermal and mechanical protection.

The door is supplied fully assembled and ready to install, with certified fire resistance of 60 minutes (EI2 120). By default it is available left‑hand opening (SX); right‑hand opening (DX) is available on request.

Main features:

• The leaf consists of two galvanised steel sheets (0.7 mm each) with a high‑density mineral wool core alternated with layers of a special fire‑resistant compound. Total leaf thickness: 60 mm.
• The door is wrapped in 2 mm protective film and includes overlap protection for the frame on the two vertical sides and the head to prevent damage during transport.
• Frame made of 1.4 mm galvanised steel on 3 sides (no threshold), equipped with flexible fixing tabs for wall installation using mortar. The head of the frame includes spacers that are removable after installation.
• The locking system will be supplied left or right (SX or DX) according to your order. It is designed to accept a standard Euro profile cylinder (not included). The cylinder can be selected separately to suit your security requirements, in two variants:
  1. standard cylinder with construction key;
  2. master‑key cylinder (one master key can open multiple doors within a building).
• Fire‑resistant doors are fitted with steel safety rivets along the leaf edge and polyamide reinforcement boxes integrated into the frame on the hinge side to strengthen the hinges during a fire.
• Lever handle in black with steel core (a steel insert is mandatory for handles on fire‑resistant doors), supplied with backplates in ebonite and a construction key (a temporary key used during installation and works until the final cylinder is fitted; it includes a plastic insert that protects the cylinder hole and allows provisional access without compromising the final mechanism) and a plastic plug for the cylinder hole. The kit includes a 9×9 mm metal spindle, through‑bolts, spacers, pin and Allen key for adjustment.
• Handle centre height is 1075 mm from finished floor for standard models; customised on made‑to‑order models.
• Two height‑adjustable hinges: one spring hinge for self‑closing and one ball‑bearing hinge.
• Reinforcement plates embedded inside the leaf for later installation of panic hardware or a door closer.
• 28 mm intumescent seal mounted on the frame (expands above 170 °C to seal against fire, smoke and oxygen ingress).
• Metal identification plate on the leaf edge with product data. Each door is individually serialised.
• Standard finish: semi‑gloss paint, RAL 7035 Light Grey (        ), RAL 9010 Pure White, RAL 7016 Anthracite Grey (        ).
• Approximate weight: 35 kg/m² (EI2 60).
• Delivered on a wooden pallet with installation and maintenance manual and conformity documents, all shrink‑wrapped.

Standard equipment includes:

• 28 mm intumescent seal for fire‑time sealing;



  Intumescent seal for optimal sealing
• Product serial label;



  Metal plate stamped with product serial

Optional equipment

To meet specific project requirements, the Endoor door can be complemented with additional accessories.

Electronic smart lock with card, available in black, grey, and white

Painting in colours other than RAL 7035 Light Grey (        ), RAL 9010 Pure White, and RAL 7016 Anthracite Grey (        )

Finish type	Unit	Price (€)
Standard - Category 1
RAL 7035	-	-
Semi‑Standard - Category 2
RAL 1013, 9010, NCS4020-B50G	per leaf	3,2
Semi‑Standard - Category 3
RAL 3000, 5010, 6000, 7004, 7024, 7038, 9002, 9011, 9018	1 leaf	59,4
	2 - 5 leaves	30,2
	6 - 29 leaves	15,1
	30 - 59 leaves	9,7
	over 60 leaves	7,6
Semi‑Standard - Category 4
RAL 1018, 1037, 2003, 2004, 3004, 5002, 5012, 6003, 6005, 6009, 6014, 6034, 7001, 7021, 7022, 7039, 7044, 8001, 8002, 8003, 8014, 8017, 8019, 8024, 9007	1 leaf	75,6
	2 - 5 leaves	41,0
	6 - 29 leaves	24,8
	30 - 72 leaves	17,3
	73 - 180 leaves	15,1
	over 180 leaves	14,0
Special - Category 5
Other RAL colours, incl. metallics, excluding pearlescent and phosphorescent	1 leaf	107,9
	2 leaves	80,9
	3 leaves	64,8
	4 - 5 leaves	48,6
	6 - 8 leaves	37,8
	9 - 20 leaves	25,9
	21 - 36 leaves	21,6
	37 - 54 leaves	19,4
	55 - 72 leaves	18,3
	73 - 180 leaves	17,3
	over 180 leaves	16,2
Different colour between leaf and frame
+100% RAL leaf +50% RAL frame	-	-
Touch‑up paint with hardener (20%)
Quantity 0.5 kg (categories 1, 2, 3, 4)	pc	13
Quantity 1 kg (categories 1, 2, 3, 4)	pc	22
Touch‑up spray
Available colours: RAL 7035, 1013, 9002, 9010	pc	13

Fire‑resistant glazing, including glazing beads/profiles. Screws visible on one side.

Note: If glazing is fitted to timber‑effect doors, a surcharge of €48.00 each applies.

Fire‑resistant glass EI2 60 (25 mm thickness)

300 x 400 mm	288,01 €
400 x 600 mm	424,11 €
Round window Ø 300 mm	403,28 €

Other optional products

HANDLES

Description	Surcharge (€)	Total extra cost (€)
MS = Standard handle for single‑leaf door, backplates with cylinder hole
BLACK	0,00	10,25
ALUX colour	0,00	10,25
STAINLESS STEEL	59,36	59,36
MSA = Standard handle for double‑leaf door
BLACK	0,00	11,87
ALUX colour	0,00	11,87
STAINLESS STEEL	59,36	59,36
MP = Handle + fixed knob, backplates with cylinder hole
BLACK	3,78	13,82
ALUX colour	3,78	13,82
MA = Handle + emergency handle, backplates with cylinder hole*
BLACK	15,11	13,28
ALUX colour	15,11	13,28
STAINLESS STEEL	63,67	63,67
PP = Fixed knob + fixed knob, backplates with cylinder hole
BLACK	3,78	13,82
ALUX colour	3,78	13,82
CC = Plate + plate, backplates with cylinder hole
BLACK	-2,59	6,15
ALUX colour	-2,59	6,15
PC = Fixed knob + plate, backplates with cylinder hole
BLACK	3,56	13,60
ALUX colour	3,56	13,60
MM = Handle + handle, backplates without cylinder hole
BLACK	-0,10	8,85
ALUX colour	-0,97	8,85
MS MP = Standard handle for Multiplay door, backplates with cylinder hole
BLACK	0,00	6,04
M20 = Toilet handle (vacant/engaged)	0,00	0,00
BLACK	46,63	21,91
Without MS or MS2A handle	-3,35	-

* Includes emergency handle (without cylinder)

Surcharge: handles other than MS (or MS2A for double‑leaf doors)

“TWIST” CROSSBARS (panic hardware)

Description	Surcharge	Additional sale
TW BM = Twist bar + handle and plate with half cylinder
BLACK or ALUX	78,47	75,66
TW BSP = Twist bar + fixed knob and plate with half cylinder
BLACK or ALUX	81,06	78,47
TW BS = Twist bar + plate with half cylinder
BLACK or ALUX	75,66	73,07
TW BMC = Twist bar + handle with blank plate
BLACK or ALUX	65,19	71,88
TW BC = Twist bar + blank cylinder
BLACK or ALUX	62,49	69,18
TW B = Simple Twist bar
BLACK or ALUX	59,79	66,48
TW A = Twist bar for inactive leaf (with support arm)
BLACK or ALUX	86,34	66,48
TW A = Twist bar for inactive leaf (without support arm)
BLACK or ALUX	75,66	-

Surcharge: Twist bar instead of MS/MS2A; includes preparation for BM, BSP and BS; replaces panic hardware and half cylinder.

Additional sale: Kit including base, aluminium bar, threaded spindle and opposite‑side handle; half cylinder for BM - BSP - BS types without latch case

Description	Price (€)
TWIST Base = Box with base, 9×9×110 spindle, without bar BLACK or ALUX	53,10
BAR for Twist	8,09
STAINLESS‑STEEL BAR for Twist	97,14
BM box (pull‑side parts, without cylinder) BLACK or ALUX	7,45
BM box STAINLESS STEEL	53,10
BSP box BLACK or ALUX	8,53
BS box BLACK or ALUX	5,07
BMC box BLACK or ALUX	7,99
BC box BLACK or ALUX	5,07

SLASH CROSSBAR (panic hardware)

Description	Surcharge	Additional sale
SL BM = Slash bar + handle and plate with half cylinder
BLACK or ALUX	97,14	91,85
BLACK or ALUX with STAINLESS‑STEEL handle	138,26	132,97
STAINLESS STEEL	248,23	248,23
SL BSP = Slash bar + fixed knob and plate with half cylinder
BLACK or ALUX	99,73	94,44
SL BS = Slash bar + plate with half cylinder
BLACK or ALUX	93,04	88,93
SL BMC = Slash bar + handle with blank plate
BLACK or ALUX	82,35	87,75
SL BC = Slash bar + blank plate
BLACK or ALUX	78,47	83,75
SL B = Simple Slash bar
BLACK or ALUX	74,47	81,06
SL A = Slash bar for inactive leaf – fire‑resistant doors – with arm included
BLACK or ALUX	101,02	-
SL A = Slash bar for inactive leaf, without support arm		0,00
BLACK or ALUX	90,45	81,06
STAINLESS STEEL	194,27	194,27

Surcharge for Slash bars instead of standard MS (or MS2A for double‑leaf doors), with preparation included. For BM, BSP, BS models, conversion to emergency handle and half cylinder is included. Doors ordered with a Slash bar are supplied with a fixing plate; no cover caps for standard cut‑outs.

Additional sale: Kit including base, aluminium bar, threaded spindle and opposite‑side handle; half cylinder for BM, BSP, BS without latch case and without fixing plate and cover cap.

Description	Price (€)
SLASH Base = Box with bases, 9×9×110 spindle, without bar BLACK or ALUX	72,85
BAR + threaded spindle	9,71
BM box (pull‑side parts, without half cylinder) BLACK or ALUX	7,56
BSP box (pull‑side parts, without half cylinder) BLACK or ALUX	8,53
BS box (pull‑side parts, without half cylinder) BLACK or ALUX	5,07
BMC box (pull‑side parts)	7,99
BC box (pull‑side parts) BLACK or ALUX	5,07
Fixing plate	1,73
Decorative cap with black plastic screw	13,06

LOCKS

Code	Description	Unit	Surcharge	Separate sale
SERS015010	Standard lock “015” for single‑leaf or active leaf of double‑leaf doors; usable with Twist and Slash BMC, BC, B emergency bars	pc	-	7,45
SERAPAP010	Emergency lock “016” – push type – for single‑leaf or active leaf of double‑leaf doors; usable with Twist or Slash BMC, BSP, BS or MA emergency bars	pc	11,87	19,32
SERATIR010	Emergency lock “016” – pull type – for the same applications as above	pc	19,32	19,32
SER019L010	Standard lock “019” for inactive leaf	pc	-	18,02
SER019L010	Standard lock “019” for reversible inactive leaf	pc	18,02	18,02
SERAPAS010	Emergency lock “020” for inactive leaf, compatible with Twist or Slash type A emergency bars	pc	6,91	24,93

ACCESS CONTROL SYSTEM (SCA)

Code	Description	Unit	Surcharge	Additional sale
SERSCA1010	SCA 1 electric lock, DX or SX, usable with BM or MA emergency handle; pull side adjusted	pc	108,90	82,35
SERSCA1010SP	SCA 1 electric lock, DX or SX, usable with BM or MA emergency handle; push side adjusted	pc	108,90	82,35
SERSCA2010	SCA 2 electric lock, DX or SX, usable with MS or MSA2 emergency handle; both sides adjusted	pc	108,90	82,35

CONTROL UNITS, DETECTORS, ELECTROMAGNETS

Code	Description	Unit	Price (€)
CENMONO010	Control unit certified EN54‑2 and EN54‑4	pc	372,14
BATTAM010	Battery 12 V / 1.1 Ah (2 pcs for the control unit)	pc	58,28
CENPUL010	Manual call point (2 pcs for the control unit)	pc	55,80
CENSIR010	Sounder certified EN54‑3	pc	123,69
RIVFU010	Smoke/heat detector EN54‑7 and EN54‑5	pc	117,10
RIVEPAR010	E‑PAR electromagnet, wall mount, with steel armature	pc	47,81
RIVEPAV010	E‑PAV electromagnet, floor mount, with steel armature	pc	130,38

SMOKE AND ACOUSTIC SEALING

(attenuation 37 dB for single‑leaf door, 36 dB for double‑leaf door)

Code	Description	Unit	Price (€)
GUAR1M	Sealing for Endoor/Uniform frame	LM	2,91
GUAR1R	Sealing for Endoor/Uniform frame	150 LM	199,45
GUAR3M	Sealing for Enplus frame	LM	4,43
GUAR3R	Sealing for Enplus frame	80 LM	199,45
GUAR9M	Sealing for Encore frame	LM	3,99
GUAR9R	Sealing for Encore frame	100 LM	206,04
GUAR2M	Sealing for Endoor on plasterboard walls	LM	4,21
GUAR2R	Sealing for Endoor on plasterboard walls	200 LM	331,02
GUAR4M	Sealing for inactive leaf Endoor/Enplus/Encore	LM	4,64
GUAR4R	Sealing for inactive leaf Endoor/Enplus/Encore	50 LM	130,38
GUA10M	Sealing for Multiplay frame	LM	2,81
GUA10R	Sealing for Multiplay frame	150 LM	275,22

AUTOMATIC DOOR DROP SEAL

Code	Description	Unit	Price (€)
GUARSOTT	Automatic drop seal for door (to indicate opening towards the wall)	pc	69,18

SELF‑EXPANDING (INTUMESCENT) SEAL

Code	Description	Unit	Price (€)
RICGA44010	Self‑expanding intumescent seal 44 mm	LM	6,58
RICGA44010R	Self‑expanding intumescent seal 44 mm	25 LM	154,12
RICGA28010	Self‑expanding intumescent seal 28 mm	LM	4,32
RICGA28010R	Self‑expanding intumescent seal 28 mm	25 LM	103,72

KEY CYLINDER

Code	Description	Unit	Price (€)
CLINST010	Complete cylinder 40/40, with 3 keys	pc	8,09
CLINCU010	Complete cylinder 40/40, keyed alike (3 keys)	pc	9,39
CLIMZST010	Half cylinder 40/10, with 3 keys	pc	6,80
CLMZCU010	Half cylinder 40/40, keyed alike (3 keys)	pc	7,99
CILINST010M	Complete cylinder 30/30 + 3 keys (for Multiplay doors)	pc	8,09

DOOR CLOSERS

Code	Description	Unit	Price (€)
CHICPST010	RYOBI door closer, rack‑and‑pinion with scissor arm	pc	69,18
CHISCPG010	GEZE door closer, cam‑action with sliding rail	pc	122,28

STAINLESS‑STEEL PLATES AND PROTECTIVE PLATES

Code	Description	Unit	Price (€)
FASPLAT010	Stainless‑steel plate with cut‑outs for handle or panic bar	pc	67,78
FASZKIK010	Plain/protective stainless‑steel plate without cut‑outs	pc	51,91

PERIMETER TUBE

Code	Description	Unit	Price (€)
TUBPER010	Perimeter tube for single‑ or double‑leaf doors	pc	88,93

SECONDARY FRAMES FOR Endoor / Uniform / Enplus

Code	Description	Unit	Price (€)
FSTS1	Secondary frame, opening up to 1000 x 2150	pc	56,12
FSTS2	Secondary frame, opening up to 1350 x 2150	pc	59,90
FSTS3	Secondary frame, opening up to 2000 x 2150	pc	70,37
FSTS4	Secondary frame, opening up to 2700 x 2150	pc	82,13
FSTS5	Secondary frame, opening up to 1350 x 2690	pc	82,13
FSTS6	Secondary frame, opening up to 2000 x 2690	pc	88,61
FSTS7	Secondary frame, opening up to 2700 x 2690	pc	96,49



L1 FRAME EXTENSIONS FOR ENPLUS/ENCORE DOORS

Wall thickness (mm)	Active leaf		Inactive leaf
	Wall opening height (mm)
	up to 2150	2160 - 2690	up to 2150	2160 - 2690
	Price (€)
90 - 150	39	44	46	52
155 - 200	60	66	68	73
205 - 250	78	83	85	91
255 - 300	90	95	97	103
305 - 350	119	124	126	132
355 - 400	147	152	154	160
405 - 500	171	176	179	185

SPARE PARTS

Code	Description	Unit	Price (€)
RICRC01010	Closing regulator for ENDOOR	pc	30,65
RICRC01011	Closing regulator for ENPLUS	pc	30,65
RICRCST010	Fixing plate for ENDOOR closing regulator	pc	1,73
RICRCST010EP	Fixing plate for ENPLUS closing regulator	pc	1,19
CHIAVE PATENT	Patent key (specify number 1 to 10)	pc	1,51
RICCEPO010	Ball‑bearing hinges, unpainted	pc	14,57
RICCEPO020	Ball‑bearing hinges, painted (specify colour)	pc	18,56
RICCEMO010	Spring hinge, unpainted	pc	15,87
RICCEMO020	Spring hinge, painted (specify colour)	pc	21,15
RICSPCP010	Pin for ball‑bearing hinge	pc	2,91
RICSPCM010	Pin for spring hinge	pc	4,96
RICROND010S	Washer for ball‑bearing hinge, Ø 26 mm	pc	0,32
RICNOT011	Tension pin for spring hinge	pc	0,32
RICDILO010	Top device for inactive leaf	pc	11,22
RICASTA110	Top bolt (specify height)	pc	5,94
RICASTA010	Bottom bolt (specify height)	pc	5,94
RICQ125010	Square spindle 9×9×125, cut‑to‑length	pc	1,40
RICQMAP010	Emergency square spindle 9×9×55 + 9×9×40	pc	2,70
RICCCSL00	Plastic cover set for Slash panic bar, black	pc	14,57
RICCCSL10	Plastic cover set for Slash panic bar, Alux	pc	14,57
RICCCTW00	Plastic cover set for Twist panic bar, black	pc	14,57
RICCCTW10	Plastic cover set for Twist panic bar, Alux	pc	14,57
RICCEAT010	Leaf‑to‑frame electric contact	pc	21,15
RICFIPSE15	Electrical cable for SCA, 1.5 m	pc	6,69
CUCINETTO	Ball bearing for ball‑bearing hinge	pc	1,83
MACTWME..	TWIST mechanism (right or left)	pc	21,15
VETREI60-300X400	Glass EI 60 300×400	pc	140,96
VETREI60-400X600	Glass EI 60 400×600	pc	276,41
VETREI120-300X400	Glass EI 120 300×400	pc	309,22
VETREI120-400X600	Glass EI 120 400×600	pc	661,07
FINEI60020V	Glass EI 60 300×400 with frame and gasket	pc	190,28
FINEI60030V	Glass EI 60 400×600 with frame and gasket	pc	332,64
FINEI12020V	Glass EI 120 300×400 with frame and gasket	pc	358,54
FINEI120230V	Glass EI 120 400×600 with frame and gasket	pc	716,98
MACBRAC010	Support arm	pc	11,12
RICBOCC010	Floor strike with expansion screw	pc	1,83

Optional for multifunctional use

Code	Description	Type	Unit	Price (€)
TERZA_CERNIERA	Fifth hinge fitted	Uniform, Endoor, Enplus	/ leaf	27,85
SOVRAPPREZZOMULT.	Additional mineral wool	all except Multiplay	/ leaf	15,33
LAMIERA1	Extra double metal sheet (0.7 + 0.7 mm), both sides	all except Multiplay	/ leaf	110,41
LAMIERA2	Extra double metal sheet (0.7 + 0.7 mm), handle side	all except Multiplay	/ leaf	69,18
SERR3PUNTI	Three‑point locking (minimum 10 doors), only with standard handle	all	/ door	77,17
ANTACORTA	Leaf shorter than frame by … mm	Endoor	/ door	69,18
ROSETTA	Handle preparation (minimum 30 pcs)	all except Multiplay	/ door	26,66
TELAIO4LATI	Four‑sided frame supplement	Endoor	/ door	29,25

Advantages of LOCHER Endoor doors

Beyond standard features—reversibility, easy adjustment, quick, straightforward installation—LOCHER doors offer important additional benefits.

Certification

The doors are certified to the latest European fire‑resistance standard, EN 1634. This is a key advantage over doors still produced/certified to the superseded Italian national standard UNI 9723. Customers avoid the risk of subsequent replacement, as occurred with panic bars following the Decree of 3 November 2004 (Official Gazette No. 271 of 18 November 2004), which mandated CE marking or replacement by 18 February 2011.

Exception to UNI 9723:

ENDООR and ENPLUS models for plasterboard partitions comply with the updated European requirements.

Robustness

In accordance with product standard EN 1191, LOCHER doors have passed the mandatory initial mechanical tests required for EN 1634 fire‑resistance certification, including repeated opening/closing and impact tests, also applied to glazed components. Results confirm a high design and build quality suitable for intensive long‑term use.

Guaranteed hardware

All accessories are CE‑certified and marked in line with current legislation. LOCHER’s stringent quality control ensures hinges, locks, closers and options (panic bars, door closers, etc.) comply with applicable standards for reliable operation.

Price

LOCHER doors are no more expensive than similar products that still rely on outdated certifications. You get modern design and up‑to‑date technical features at a competitive price.

Finish

The eco‑friendly liquid‑paint finish gives LOCHER doors a uniform, glossy appearance with resistance to scratching and to weathering such as rain and solar radiation.
